Electrophoresis power supply high current and voltage
Electrophoresis use power supply of large current specification.
Successor of AE-8300

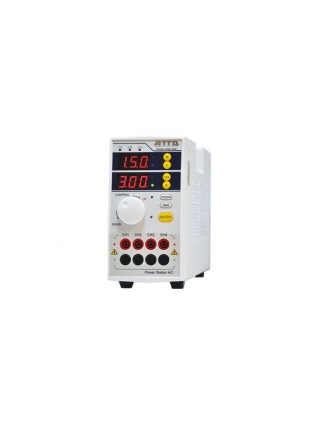

WSE-3500 powerStation HC

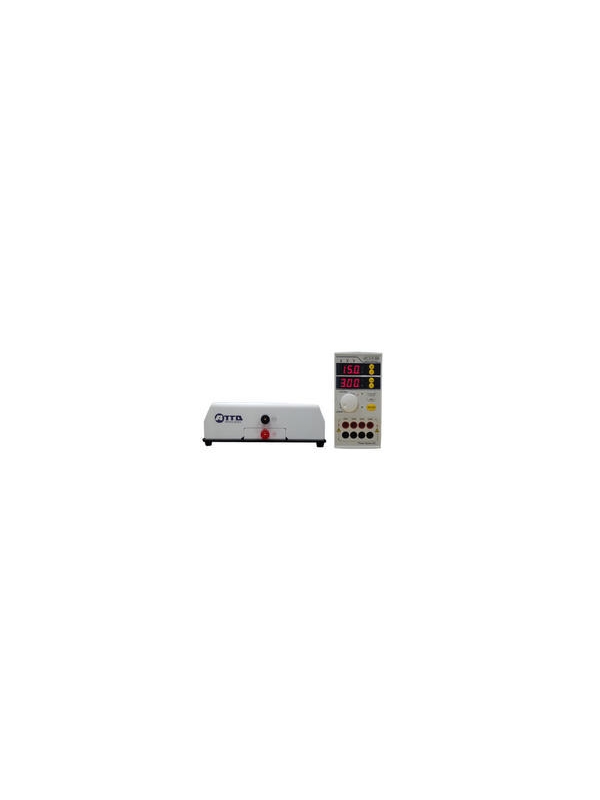

With WSE-4020
Features
- Fully programmable setting module: 21 files of free mode, 10 files of chain mode
- Pre-settings for output condition of general use (electrophoresis)
- Setting and storage of original output condition in memory
- Big sized dial-knob
- Safety function and highly reliable accuracy
- Affordable price
- Clear display and LED x 2
Specifications
| Product Number | WSE-3500 | |||
|---|---|---|---|---|
| Product Name | PowerStation HC | |||
| Output range | 5 - 150V (display 0 -) (Maximum 200W) | |||
| 0 - 3.00A (display 0 -) (Maximum 200W) | ||||
| 0 - 200W (display 0 - ) | ||||
| Setting steps | 10 - 150V 1V Steps | |||
| 0.01 - 3.00A 10mA Steps | ||||
| 1 - 200W 1W Steps | ||||
| Display | 4 digit LED x 1 | |||
| Timer | 1 - 999min、continuous 1min with timer | |||
| Control Function | Constant voltage or current with automatic crossover | |||
| Control Panel |
Display | 7seg LED3 x 2 | ||
| Setting | Turning dial | |||
| External Control | None | |||
| Alarm | Press keys, Errors, End of loading | |||
| Output accuracy |
10V - 150V ±3%+5digits against Setting value | |||
| Display accuracy |
Voltage | within the range of ±(0.2% of rdg+5digits) | ||
| Current | within the range of ±(0.5% of rdg+5digits) | |||
| Power | within the range of ±(0.5% of rdg+5digits) | |||
| Condition storage |
Preset | 30 files P01 - P30 | ||
| Free | 21 files U00 - U20, 10 files C01 - C10（chain files） | |||
| Safety protection |
