AB-1650 Super Stat Mini PID
Recirculating Temperature Control System
Super Stat Mini PID is a temperature control unit for electrophoresis equipment .
Cooling circulator for closed systems can be used in enzymatic reaction, preserving activity, electrophoresis like SSCP, which needs temperature control.

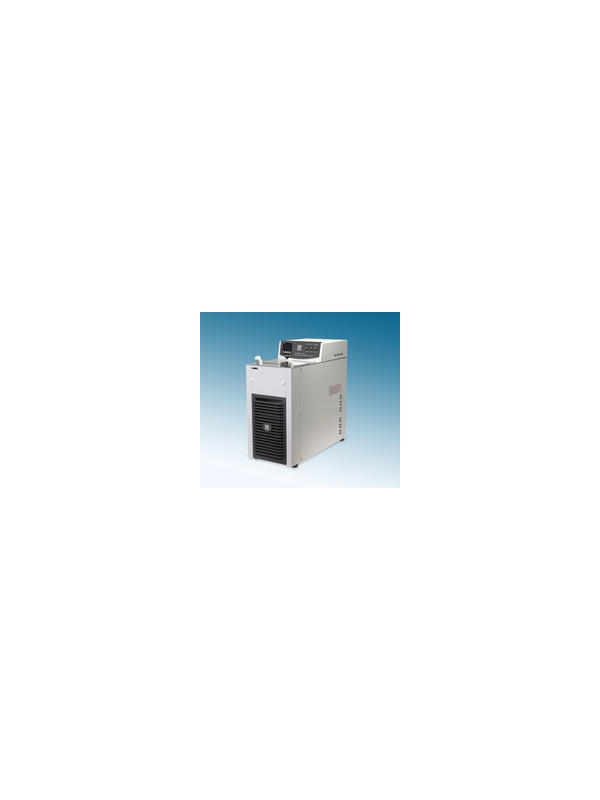

AB-1650 Super Stat Mini PID Cooling Circulator
Purpose and Application
Temperature control in experiment of electrophoresis, enzymatic reaction, etc.
Features
- Wide temperature range from -20 to +80C
- Digital PID Control with highly precise temperature adjustment (±0.05 - 0.1C)
- Circulation for an external bath or jacket (closed system)
- Breaker for short circuit/overcurrent, water level sensor, overheat alarm
Specifications
| Product Number | AB-1650 | ||
|---|---|---|---|
| Product Name | Super Stat Mini PID | ||
| Temperature Range | -20°C - +80°C | ||
| Precision of Temperature | ±0.05°C - 0.1°C Minimum Scale 0.1°C | ||
| Temperature Display | Set Temperature/Actual Temperature | ||
| Temperature Control | Digital PID (P: Proportional, I: Integral, D: Differential) | ||
| Heater | 500W (SUS Spiral Sheath Heater) | ||
| Cooler | Brushless DC Inverter 270W Coolant: R134a | ||
| Cooler Capacity | 550W (473kcal/h at 24°C) 50Hz | ||
| Circulator Pump Capacity | Max Flow Rate: 4L/min (50Hz) Vertical Maximum Pump Height 3.5m Magnet Shield Pump |
||
| Stirring Pump | Induction Motor / Screw Stirrer | ||
| Circulator Nozzle | 360° Rotating L Nozzle Outer Diameter Φ 10.6 mm (Inner Diameter Φ 8 - 10 mm) | ||
| Water Bath Dimension | 150 mm (W) × 120 mm (D) × 150 mm (H) about 3.5L | ||
| Security System | Short Circuit / Overcurrent Breaker, Float Sensor for Boil Dry Prevention, High/Low Level, Compressor Overheating Prevention, Compressor Protection Circuit | ||
| Options | Flow Rate Sensor, Flow Monitor, Flow Control Valve, Strainer | ||
| Materials | Water Bath: SUS, Neoprene, Plumbing: Neoprene, Brass, Cooling Coil: Copper Heater: SUS Circulator Pump: Brass, Float: SUS, Polypropylene Exterior: SPC Melamine Baking |
||
| Environmental Temperature/Humidity | 0°C - 30°C Relative Humidity should be under 85% (no condensation) | ||
| Power | AC100V 50/60Hz Max about 8.5A | ||
| Dimensions | 198mm（W）×431mm（D）×436mm（H） | ||
| Weight | About 22kg | ||
| Standard Accessories | Insulation Hose (x2), Drainage Hose, Operation Manual | ||
